Rotary Vane Flow Meter MT100RV

Place of Origin : Dalian China

Brand Name : oem

Certification : ISO CE

Model Number : 9888

MOQ : 1 set

Price : Negotiable

Packaging Details : Carton

Delivery Time : 3-5 days

Payment Terms : T/T, Western Union, Paypal, Moneygram.

Supply Ability : 200 set/month

Sort : Rotary Vane Flow Meter MT100RV

cel phone : 17785279887

celphone : 18878952222

mobile : 18878952222

cel. : 18878952222

tel : 18878952222

Contact Now

Email: info@metery-tech.com, sales@meterytech.com

-------------------------------------------------------------------------------
Cellphone: +86 18841127006
Skpye: meterytech
LINE: meterytech
Whatsapp: +86 18841127006
Wechat: Kai123263788
QQ: 123263788

Metery Technology Inc

--------------------------------------------------------

www.meterytech.com

1. Rotary Vane Flow Meter MT100RV
2. Swirlmeter, LUXY
3. METERY TECH.
4. Dalian China

Main Technical Parameters of Rotary Vane Flow Meter MT100RV

DN(mm) Inside Nominal Diameter(mm)	Type	(m3/ h) Range of Flow( m3/ h)	(MPa) Operating Pressure( MPa)	Accuracy Rating	Repetitiveness
15		0.3-20	1.6 2.5 4.0 6.3 10 16	1.0 1.5	Lower than one third of the absolute value of the limit of intrinsic error
20		0.5-25
25		1.0~30
32		2.0~60
40		3.0~70
50	Type A	3.0~150
50	Type B	2.5~75
80	Type A	20~400
80	Type B	10~200
100	Type A	40~800
100	Type B	30~600
150	Type A	100~1800
150	Type B	40~900
200		180~3600	1.6;2.5;4.0

Structural Diagram

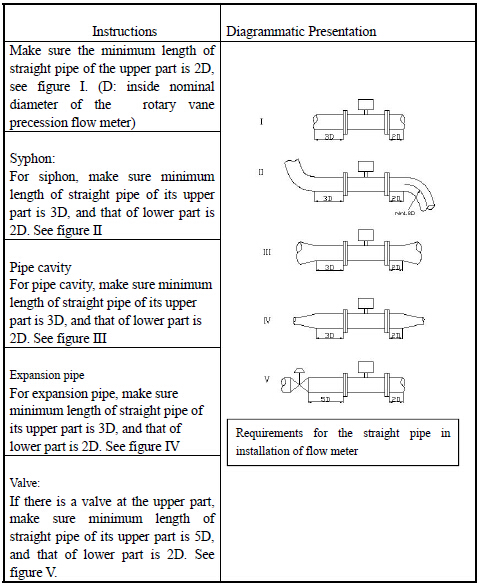

Installation Diagram
